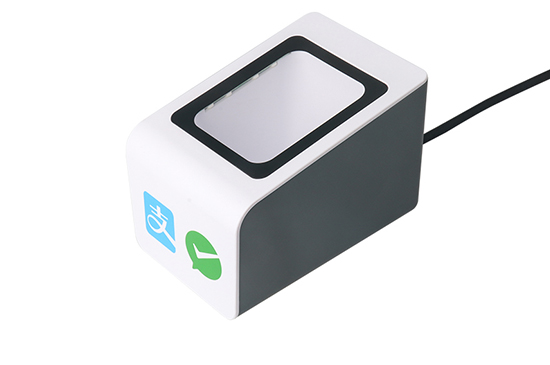

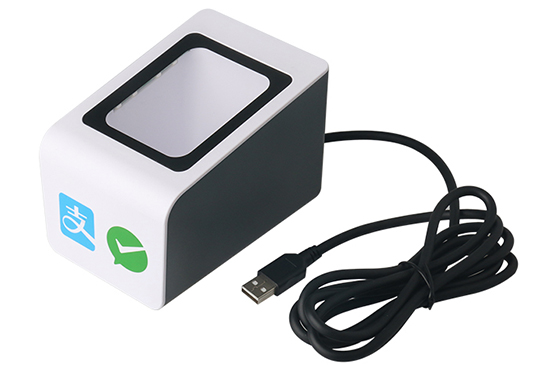

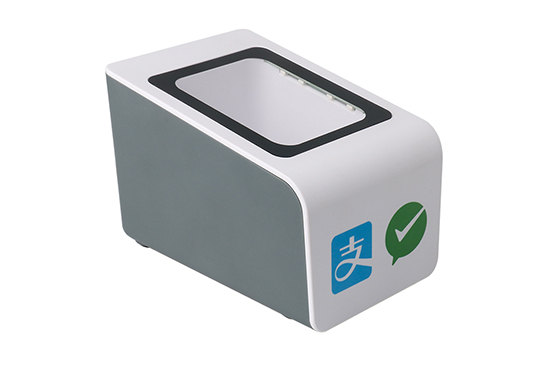

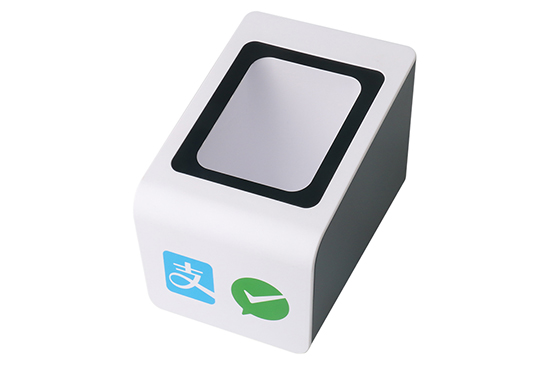

PB02 2D scanner payment box, integrated with our core barcode technology, has superior barcode decoding performance, with good performance in reading screen and printed barcode. Designed for Retail, Medical store, catering and other industries.
Back to list >>
Excellent Identification Ability
High performance scanning module, easily decode common 1D and 2D payment symbologies, have good performance in scanning printed and on-screen barcode.
Super Easy Operation and Compatibility
Easy compatible with multiple language, keyboard layout and operating system. Work well with Android, Linux, Mac, Windows and other operating system.
Automatic Interface Detection
Enable the scanner to configure appropriate interface once connected, avoid the tedious task of scanning programming.
High Quality
Adopt high quality wires and inflaming retarding materials with the international standard, recyclable and practical shell to protect the device.
Industrial Grade Durability
IP54 industrial grade, and bear the height of 1.5m dropping and ground impact.
| Performance Parameters | |
| Light source | 6500K LED for lighting |
| Image sensor | CMOS |
| Resolution | 640x480 pixels |
| Processor | ARM 32 bit |
| Decode capability | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code32, Code 93, Code 11, Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5. 2D: QR code |
| Depth of filed | 10-350mm |
| Scan angle | ±360°, ±55°, ±55°(Roll, Skew, Pitch) |
| Field of view | 86°* 58° |
| Scan precision | ≥4mil |
| Print contrast | 20% |
| Prompt mode | Buzzer, LED indicator light |
| Data communication method | USB, USB-COM |
| Trigger mode | Auto sensing continuous scanning |
| Setting method | Scan configuration barcode |
| Current | 50mA(standby), 105mA (working), 5 VDC ±10% |
| Physical Parameters | |
| Over dimension | L X W X H (127x89x85mm) |
| Weight | 210g |
| Material | ABS+PC environmentally friendly materials |
Environmental Parameters | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -40°C to 60°C |
| Anti-drop | Withstand drop from 1.5m to concrete floor |
| Humidity | 5% to 95% RH |
| IP grade | IP54 |
| Circumstance luminance | 0-100,000Lux |
